AiEMA - PCBA Manufacturing Simulation Analysis SaaS Platform
Help to verify product quickly, reduce at least one prototyping cycle, accelerate your product to market

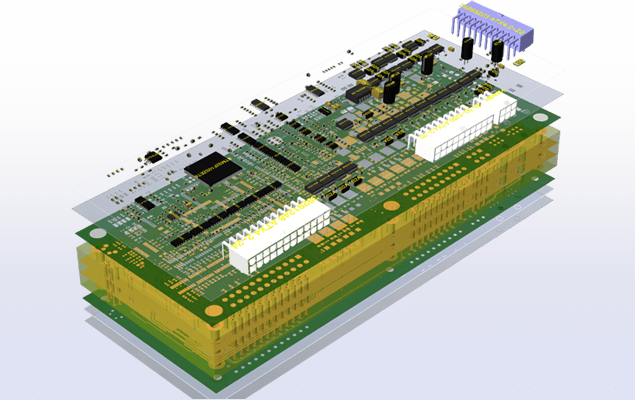

PCB/PCBA 3D Simulation
3D Gerber automated modeling including models and pattern data, assembly simulation, what you see is what you get.
- ?Support over 30 Gerber file formats of EDA/Gerber tool software
- ?Up to 40 layers of PCB automated modeling
- ?Support bare board analysis, copper layer/solder mask/silkscreen, etc.
- ?Support PCB/PCBA assembly simulation, exploded-view
- ?Support Measurement, Rotate/Translate/Perspective operations
- ?Automatically identify 60 million parts' package pad/3D model data
(Support Gerber, Place and Pick, BOM files in multiple formats)
Try Online 3D Gerber Viewer
Learn more >

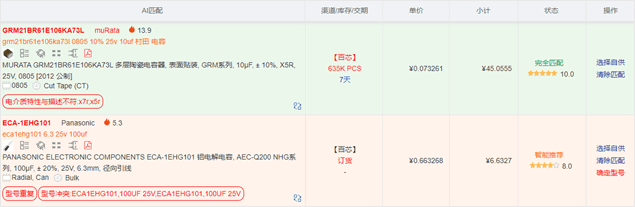

BOM Management, reduce potential risks
AI algorithm based on 200 million components, quickly identify part number, Passive Component automatic selection from specifications.
- ?15s complete BOM analysis, intelligent recommend parts
- ?60 million part models/specifications/packages/datasheets
- ?AI recommend passive parts, resistors/capacitors/inductors etc.
- ?10 million chips/active devices alternative recommended
- ?Component life cycle, risk warning of obsolete/shortage
- ?30+ BOM material standardization and abnormal warning
Part Datasheet SearchTry BOM Management Tool
Learn more >
Part Datasheet PDF Search
Example: STM32F103
72,405,303 Parts Datasheet PDF, Update more than 5,000 PDF files ervery day.
PCBA Design for Manufacturing Check (DFM)
IPC standard assembly process requirements, 200+ designs rule check, increased 50% success rate of prototyping
- ?1200+ IPC standard DFM check, expose design hazard
- ?Inspection of part's package pad/polarity/shape/empty paste etc.
- ?Automatically locate parts designator, coordinates, risk type
- ?Provide detailed risk description and avoidance suggestions
- ?Supports replacement of parts & alignment of designator offsets
- ?Support custom check rules library to meet the specific requirements
Learn more about DFM analysis
View Demo Project >
AiEMA - PCBA Manufacturing Simulation Analysis SaaS Platform
Sign up now and get free permanent membership
